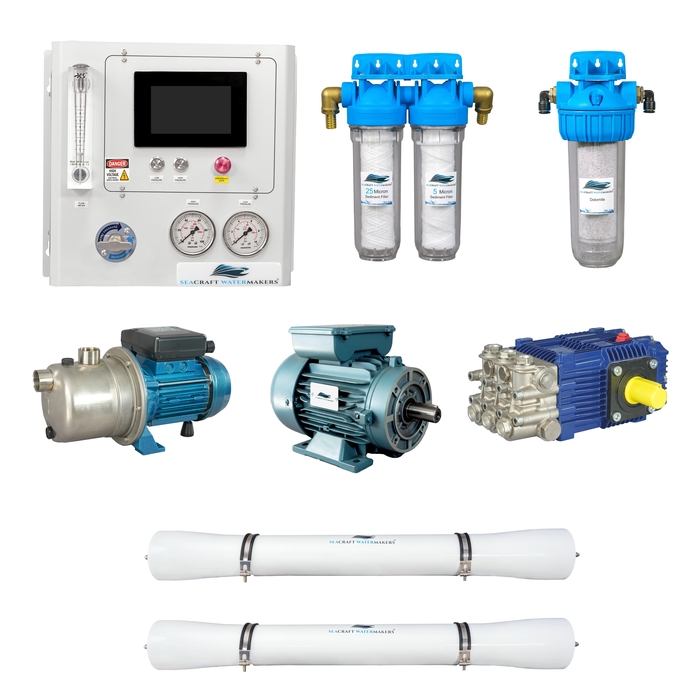

SCW-150 ECO MODULAR

SMALL ERGONOMIC DESIGN SUITABLE FOR EVERY BOAT

DIGITAL DISPLAY SCREEN

  • WATER PRODUCTION QUALITY MONITORING
  • DEVICE WORKING HOUR INDICATOR

ON-PANEL ANALOGUE INDICATORS

  • PRESSURE MONITORING
  • WATER PRODUCTION CAPACITY MONITORING

FULL SECURITY WITH LATEST TECHNOLOGY SENSORS SUITABLE FOR SEA WATER

  • AUTOMATIC SALTWATER EMERGENCY STOP
  • LOW PRESSURE PROTECTION
  • HIGH PRESSURE PROTECTION

    • ***OPTIONAL MANUAL BUTTON REMOTE CONTROL

    MODEL SCW-150 ECO MODÜLER
    VOLT 230/50 hz
    CURRENT 12.3 A
    POWER 2.2 kw
    OPERATING PRESSURE 55 Bar
    PRODUCTION CAPACITY 150 Lt/H
    DAILY PRODUCTION CAPACITY 3600 Lt/D
    SEA WATER INLET 3/4”
    TANK INLET 10 mm
    WASTE WATER 12 mm

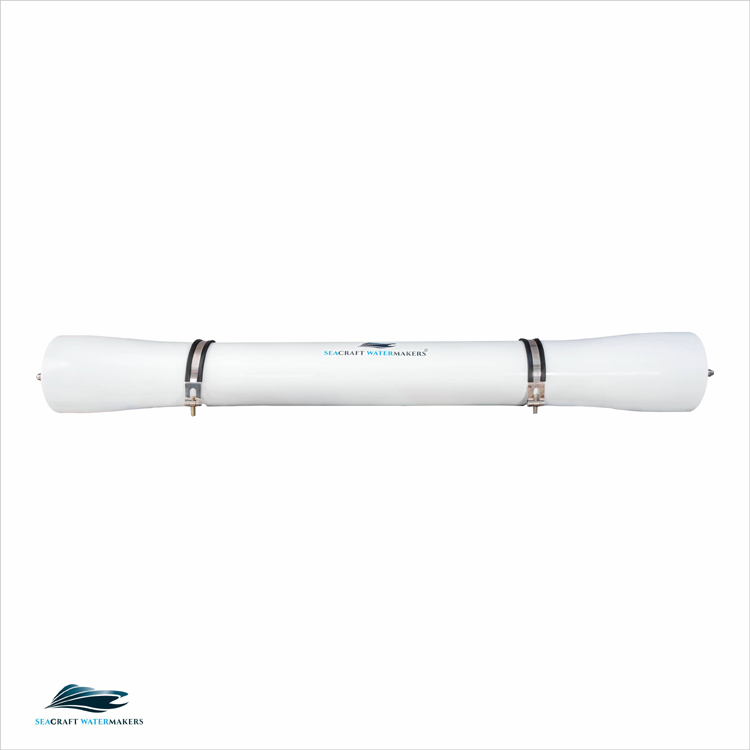

    MEMBRANE DIMENSION 4040*1
    CASE SIZE (COMPACT) 1350mm* 500mm* 360mm ( Length * Height * Depth )
    CASE SIZE (MODULAR) 400mm*350mm*165mm ( Length * Height * Depth )
    WEIGHT 68.5 kg
    ENGINE SPEED 1450 rpm
    SOUND LEVEL 75 Db
    MODEL SCW-150 ECO MODULAR
    PRESSURE MONITORING ANALOGUE PRESSURE INDICATOR
    WATER PRODUCTION CAPACITY MONITORING ANALOGUE FLOWMETER
    WATER PRODUCTION QUALITY MONITORING DIGITAL SCREEN
    DEVICE WORKING HOUR INDICATOR DIGITAL SCREEN
    AUTOMATIC SALTWATER EMERGENCY STOP IF THE PRODUCED WATER REMAINS ABOVE 1000 PPM (SALINITY OF 1000 PPM OR HIGHER) FOR 2 MINUTES, THE DEVICE AUTOMATICALLY SHUTS ITSELF OFF TO PREVENT THE FILLING OF THE WATER TANK WITH SALTY WATER, IN ACCORDANCE WITH THE PURPOSE OF PREVENTING SUCH A SITUATION.
    LOW PRESSURE PROTECTION WHEN THE LOW-PRESSURE PUMP IS ACTIVATED, IF THE REQUIRED PRESSURE VALUE IS NOT DETECTED WITHIN 30 SECONDS, THE DEVICE AUTOMATICALLY SHUTS ITSELF OFF TO PREVENT ANY DAMAGE TO THE LOW-PRESSURE PUMP. IT ALSO TRIGGERS A LOW-PRESSURE ALARM. THE DEVICE CANNOT BE REACTIVATED UNTIL THE ALARM IS RESET.
    HIGH PRESSURE PROTECTION THE DEVICE AUTOMATICALLY SHUTS OFF WHEN THE PRESSURE EXCEEDS 65 BAR.
