SCW-50 ECO MODULAR 12V DC
SMALL ERGONOMIC DESIGN SUITABLE FOR EVERY BOAT
DIGITAL DISPLAY
- WATER PRODUCTION CAPACITY MONITORING
- DEVICE WORKING HOUR INDICATOR

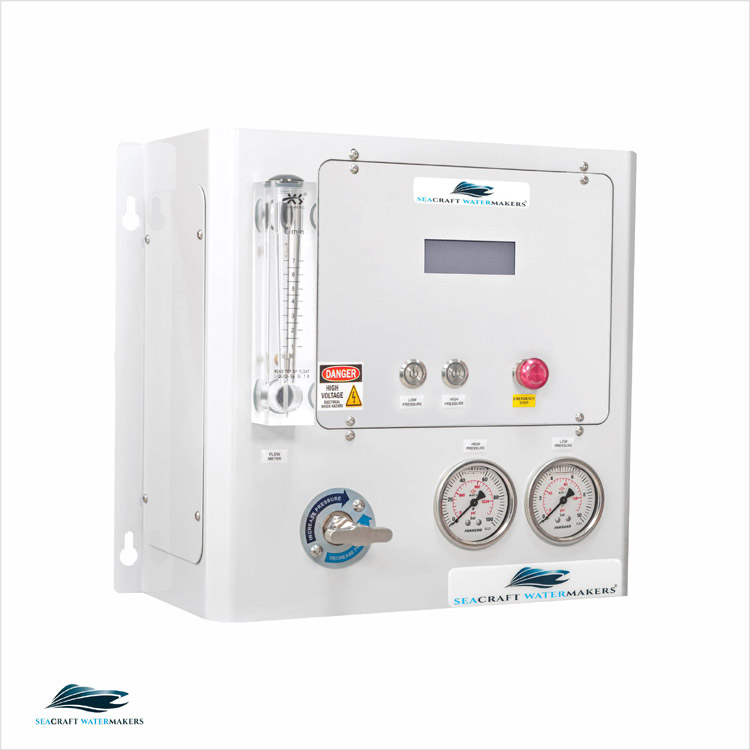

ON-PANEL ANALOGUE INDICATORS
- PRESSURE MONITORING
- WATER PRODUCTION CAPACITY MONITORING
FULL SECURITY WITH LATEST TECHNOLOGY SENSORS SUITABLE FOR SEA WATER
- AUTOMATIC SALTWATER EMERGENCY STOP
- LOW PRESSURE PROTECTION
- HIGH PRESSURE PROTECTION
***OPTIONAL MANUAL BUTTON REMOTE CONTROL
| MODEL | SCW-50 ECO MODULAR 12V DC |
|---|---|
| VOLT | 12V DC |
| CURRENT | 43A |
| POWER | 550W |
| OPERATING PRESSURE | 55 Bar |
| PRODUCTION CAPACITY | 50-60 Lt/H |
| DAILY PRODUCTION CAPACITY | 1200 Lt/D |
| SEA WATER INLET | 3/4” |
| TANK INLET | 8 mm |
| WASTE WATER | 12 mm |

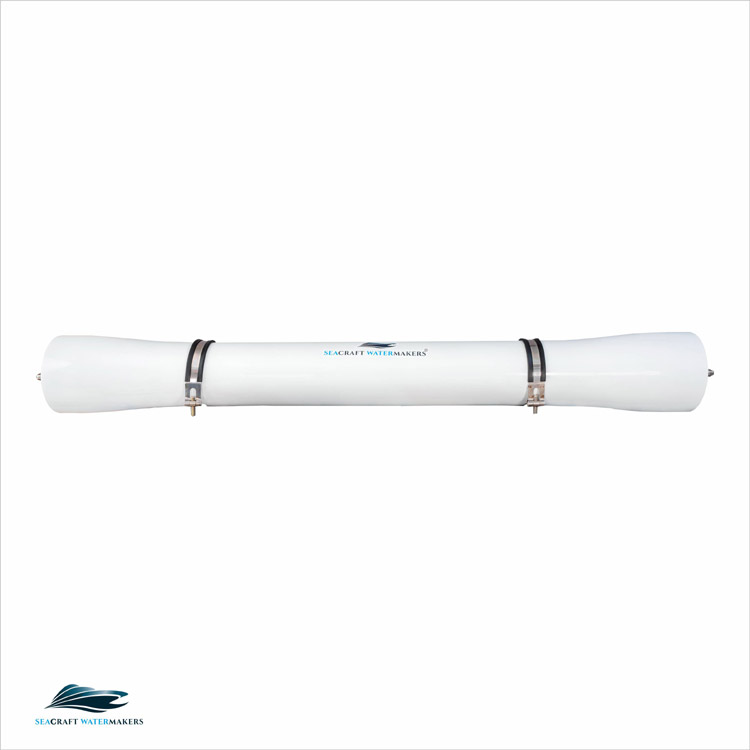

| MEMBRANE DIMENSION | 2540*1 |
| CASE SIZE (COMPACT) | 1150mm * 750mm * 390mm ( Length * Height * Depth ) |
| CASE SIZE (MODULAR) | 400mm * 350mm * 165mm ( Length * Height * Depth ) |
| WEIGHT | 20 kg |

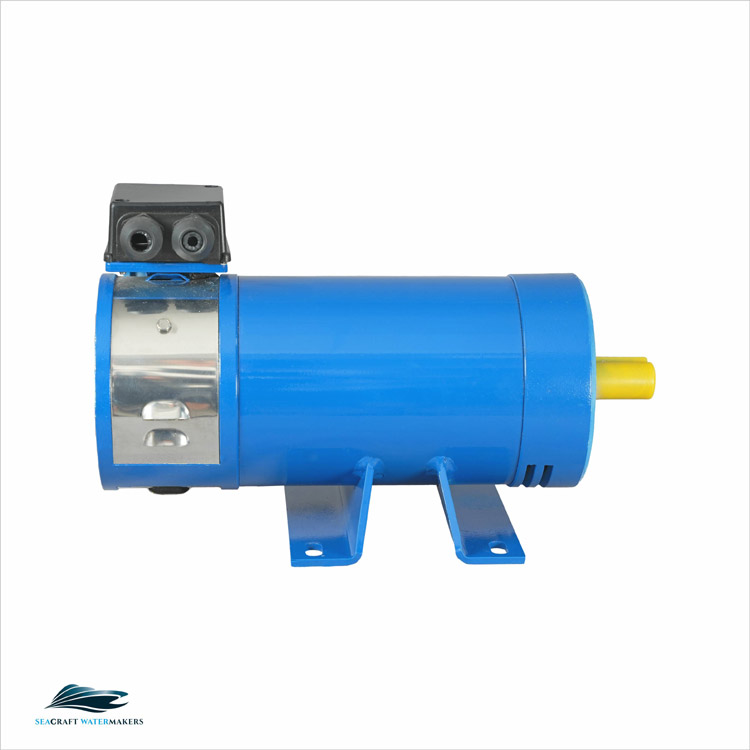

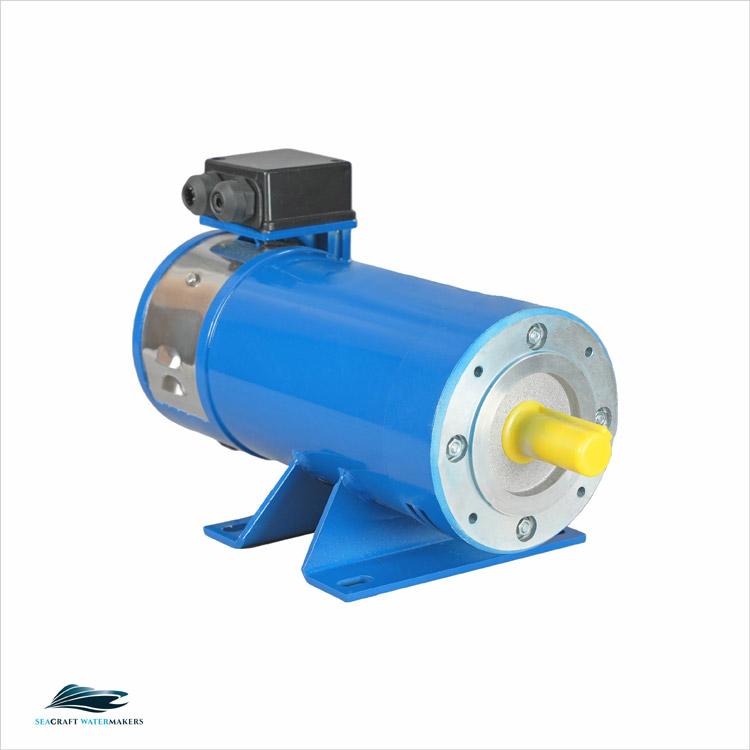

| ENGINE SPEED | 1450 rpm |
| SOUND LEVEL | 25 Db |
| MODEL | SCW-50 ECO MODULAR 12V DC |
|---|---|
| PRESSURE MONITORING | ANALOGUE PRESSURE INDICATOR |
| WATER PRODUCTION CAPACITY MONITORING | ANALOGUE FLOWMETER |
| WATER PRODUCTION QUALITY MONITORING | DIGITAL SCREEN |
| DEVICE WORKING HOUR INDICATOR | DIGITAL SCREEN |
| AUTOMATIC SALTWATER EMERGENCY STOP | IF THE PRODUCED WATER REMAINS ABOVE 1000 PPM (SALINITY OF 1000 PPM OR HIGHER) FOR 2 MINUTES, THE DEVICE AUTOMATICALLY SHUTS ITSELF OFF TO PREVENT THE FILLING OF THE WATER TANK WITH SALTY WATER, IN ACCORDANCE WITH THE PURPOSE OF PREVENTING SUCH A SITUATION. |
| LOW PRESSURE PROTECTION | WHEN THE LOW-PRESSURE PUMP IS ACTIVATED, IF THE REQUIRED PRESSURE VALUE IS NOT DETECTED WITHIN 30 SECONDS, THE DEVICE AUTOMATICALLY SHUTS ITSELF OFF TO PREVENT ANY DAMAGE TO THE LOW-PRESSURE PUMP. IT ALSO TRIGGERS A LOW-PRESSURE ALARM. THE DEVICE CANNOT BE REACTIVATED UNTIL THE ALARM IS RESET. |
| HIGH PRESSURE PROTECTION | THE DEVICE AUTOMATICALLY SHUTS OFF WHEN THE PRESSURE EXCEEDS 65 BAR. |
