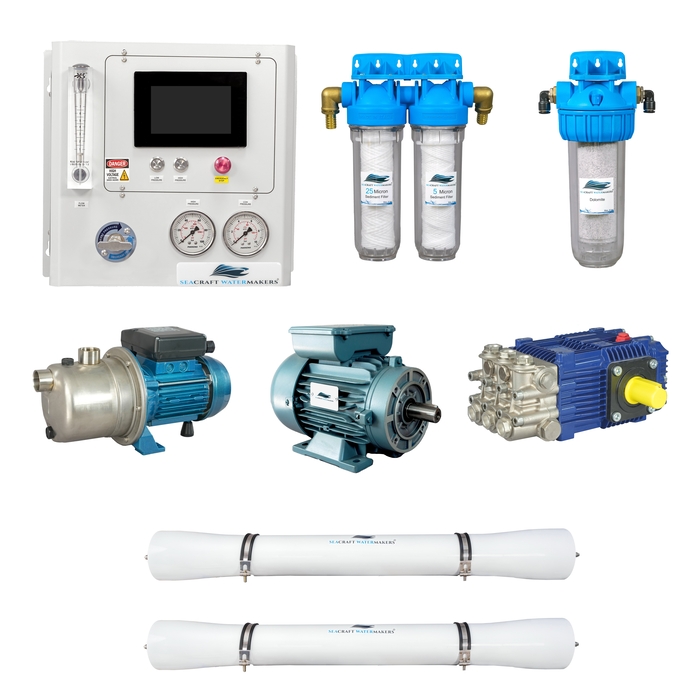

SCW-350 PRO MODULAR

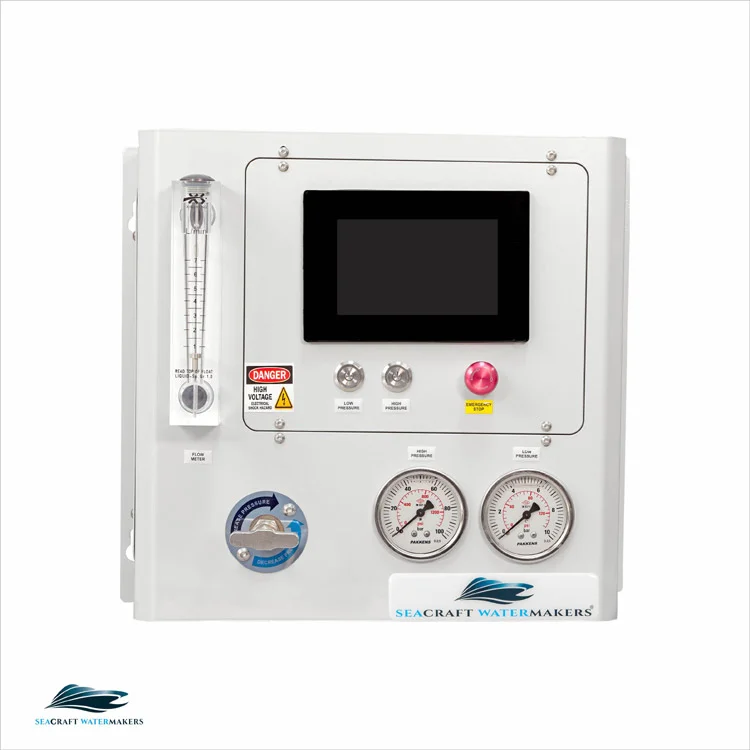

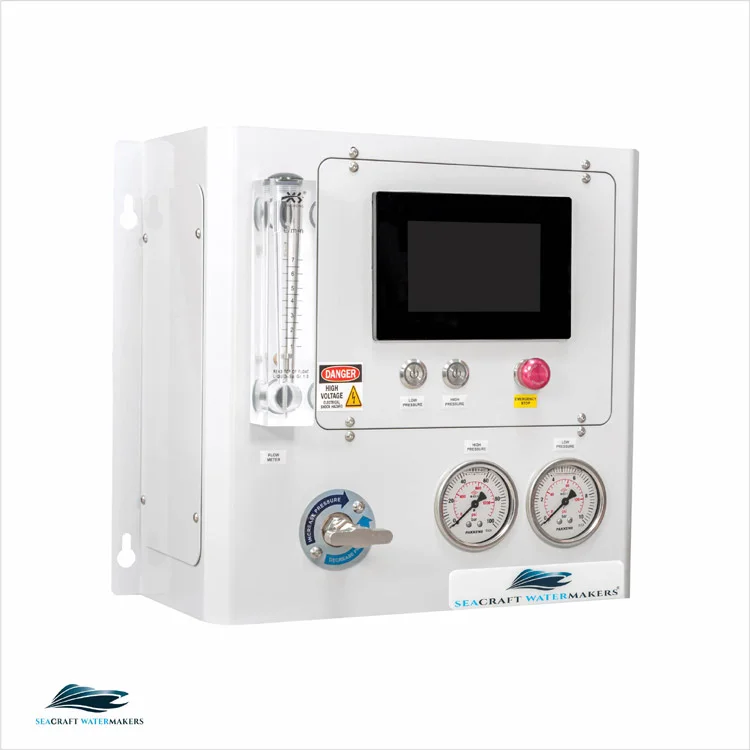

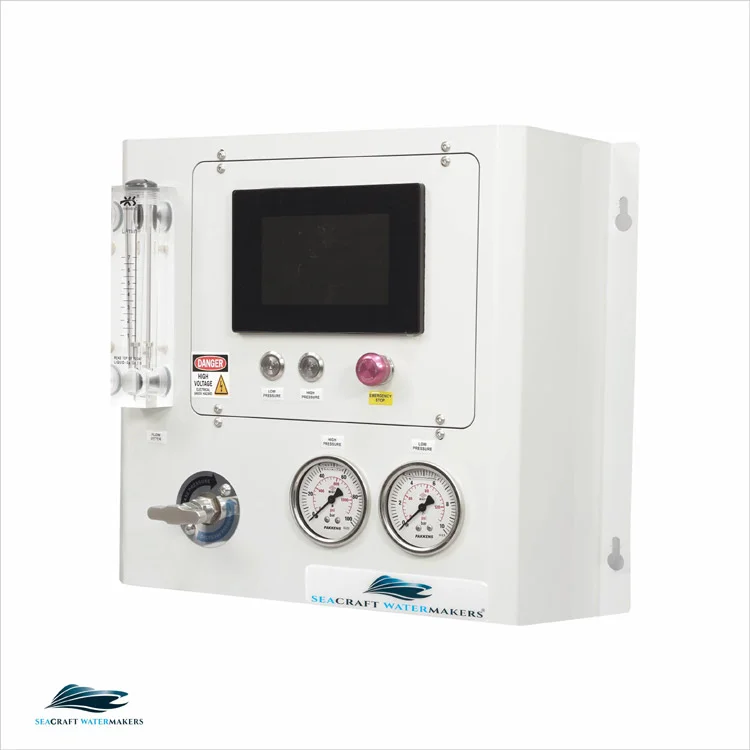

316L STAINLESS CHROME CASE WITH 5'' TOUCH SCREEN CONTROL PANEL
- PRESSURE MONITORING
- WATER PRODUCTION CAPACITY MONITORING
- WATER PRODUCTION QUALITY MONITORING
- DEVICE WORKING HOUR INDICATOR
- REMOTE CONTROL 5'' TOUCH SCREEN DIGITAL DISPLAY ***OPTIONAL
FULL SECURITY WITH LATEST TECHNOLOGY SENSORS SUITABLE FOR SEA WATER
- AUTOMATIC SALTWATER EMERGENCY STOP
- LOW PRESSURE PROTECTION
- HIGH PRESSURE PROTECTION
- WORKING SAFETY SYSTEM
DUAL AUTOMATION SYSTEM
- BEING ABLE TO CONTROL THE DEVICE FROM THE TOUCH SCREEN WITH INDEPENDENT MANUAL BUTTONS
| MODEL | SCW-350 PRO MODULAR |
|---|---|
| VOLT | 230/50 hz |
| CURRENT | 16.3 A |
| POWER | 3 kw |

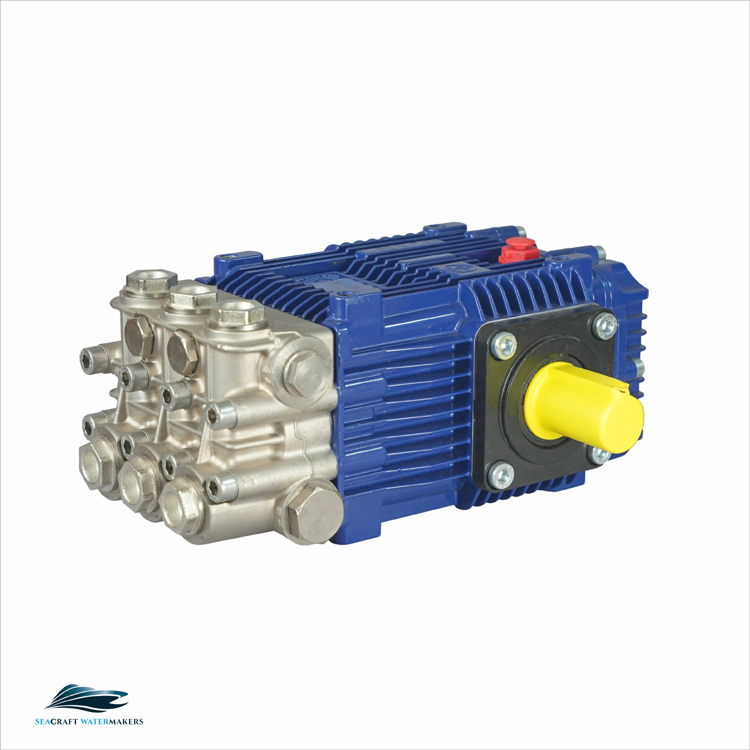

| OPERATING PRESSURE | 55 Bar |
| PRODUCTION CAPACITY | 350 Lt/H |
| DAILY PRODUCTION CAPACITY | 8400 Lt/D |
| SEA WATER INLET | 3/4” |
| TANK INLET | 12 mm |
| WASTE WATER | 12 mm |

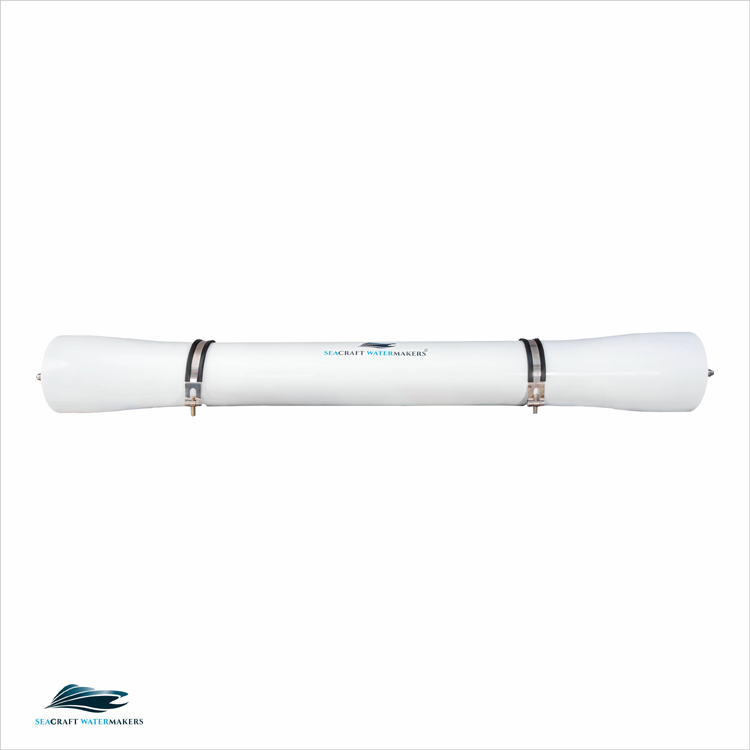

| MEMBRANE DIMENSION | 4040*2 |
| CASE SIZE (COMPACT) | 1350mm* 500mm*360mm ( Length * Height * Depth ) |
| WEIGHT | 85 kg |

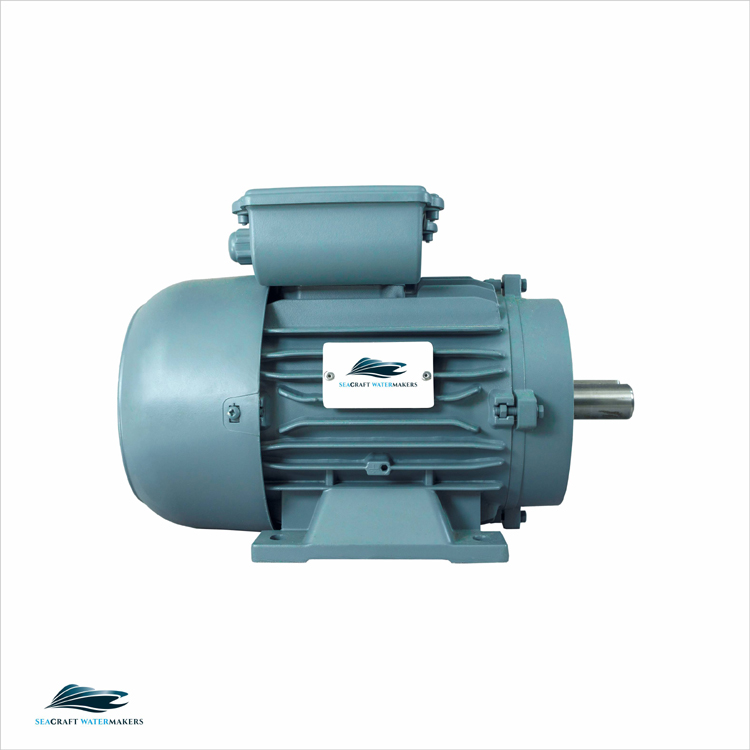

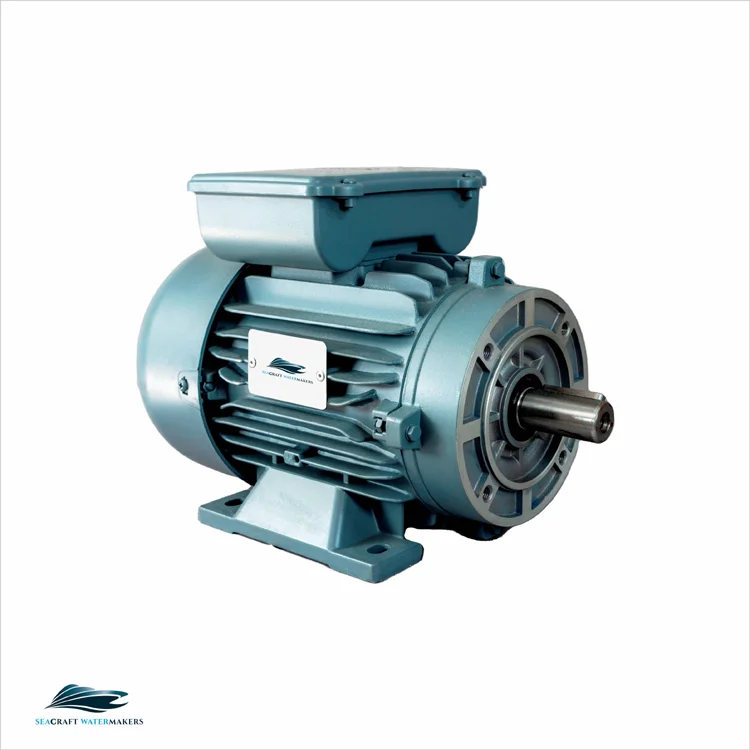

| ENGINE SPEED | 1450 rpm |
| SOUND LEVEL | 75 Db |
| MODEL | SCW-350 PRO MODULAR |
|---|---|
| PRESSURE MONITORING | ANALOGUE PRESSURE INDICATOR / 5’’ TOUCHSCREEN DIGITAL DISPLAY |
| WATER PRODUCTION CAPACITY MONITORING | ANALOGUE FLOWMETER / 5’’ TOUCHSCREEN DIGITAL DISPLAY |
| WATER PRODUCTION QUALITY MONITORING | 5’’ TOUCHSCREEN DIGITAL DISPLAY |
| DEVICE WORKING HOUR INDICATOR | 5’’ TOUCHSCREEN DIGITAL DISPLAY |
| AUTOMATIC SALTWATER EMERGENCY STOP | IF THE PRODUCED WATER REMAINS ABOVE 1000 PPM (SALINITY OF 1000 PPM OR HIGHER) FOR 2 MINUTES, THE DEVICE AUTOMATICALLY SHUTS ITSELF OFF TO PREVENT THE FILLING OF THE WATER TANK WITH SALTY WATER, IN ACCORDANCE WITH THE PURPOSE OF PREVENTING SUCH A SITUATION. |

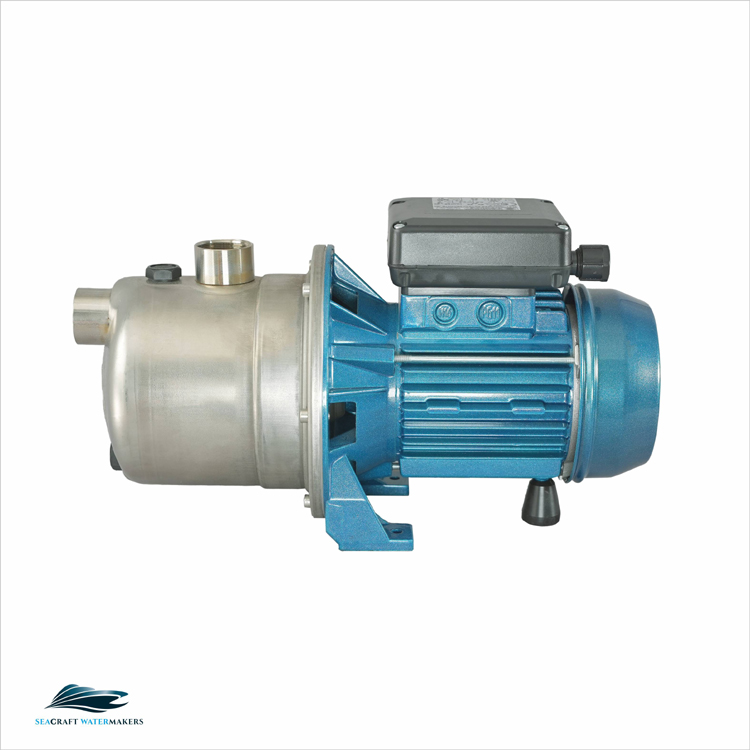

| LOW PRESSURE PROTECTION | WHEN THE LOW-PRESSURE PUMP IS ACTIVATED, IF THE REQUIRED PRESSURE VALUE IS NOT DETECTED WITHIN 30 SECONDS, THE DEVICE AUTOMATICALLY SHUTS ITSELF OFF TO PREVENT ANY DAMAGE TO THE LOW-PRESSURE PUMP. IT ALSO TRIGGERS A LOW-PRESSURE ALARM. THE DEVICE CANNOT BE REACTIVATED UNTIL THE ALARM IS RESET. |
| HIGH PRESSURE PROTECTION | IF THE DEVICE'S HIGH-PRESSURE EXCEEDS 65 BAR OR IF THE HIGH-PRESSURE VALUE SUDDENLY DROPS WHILE THE DEVICE IS OPERATING (SUCH AS HOSE RUPTURE, ETC.), THE DEVICE AUTOMATICALLY SHUTS ITSELF OFF TO PREVENT FLOODING OF THE AREA WHERE THE DEVICE IS LOCATED. IT TRIGGERS A HIGH-PRESSURE ALARM AND CANNOT BE REACTIVATED UNTIL THE ALARM IS RESET. |
| DUAL AUTOMATION SYSTEM | THANKS TO THE DUAL AUTOMATION SYSTEM, YOUR DEVICE IS EQUIPPED WITH AN ELECTRONIC SYSTEM THAT ALLOWS MANUAL OPERATION THROUGH THE CONTROL PANEL IN THE EVENT OF A MALFUNCTION. THIS MEANS THAT EVEN IF THERE IS AN ELECTRONİC FAILURE, YOU WILL STILL BE ABLE TO MEET YOUR WATER NEEDS UNTIL THE TECHNICAL SERVICE RESOLVES THE ISSUE. |
| REMOTE CONTROL 5’’ TOUCHSCREEN DIGITAL DISPLAY (OPTIONAL) | TO MAKE IT EASIER FOR YOU TO CONTROL THE DEVICE, A REMOTE CONTROL SCREEN CAN BE INSTALLED ON THE BOAT WHEREVER YOU WANT. THROUGH THE SCREEN, YOU CAN PERFORM DEVICE POWER ON/OFF AND MONITOR TECHNICAL DATA OF THE DEVICE. |
